Pole Mount Weatherproof Enclosure With Back Plate Custom Metal Outdoor Box IP55
1. Features
(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: direct ventilation.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
(4) IP level: IP55
(5) Coating: outdoor anti-corrosion powder coating
2. Application
The ET402555 outdoor cabinet is mainly used in wireless communication base station, can used for containing battery, switch, solar controller, modem, power supply, circuit board, breaker etc. It is pole mount.
3. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 400×250×550mm |
| Layout | 1 compartment |
| Equipment Installation Method | Including one back plate,can be removable |
| Door | With one front door and cabinet lock |
| Material | Galvanized steel, single wall without insulation |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | Direct ventilation |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| | | Storage Temperature: -50°C ~ + 70°C |
| | | Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Cabinet | 1 | PC | (1) External Dimension: W×D×H 400×250×550mm (2) One compartment, include one removable back plate. (3) With one front door and cabinet lock (4) Material: galvanized steel, single wall without insulation (5) Including cable entry gland on the bottom (6) IP grade : IP55 (7) Including vent on the two sides of cabinet (8) Including battery fix frame (9) Installation method: pole mount, including installation accessories |
| 2 | Package | 1 | PC | Carton with wooden pallet |
5. Cabinet Dimension
External Dimension: W×D×H 400×250×550mm
6. Pole Mount Diagram

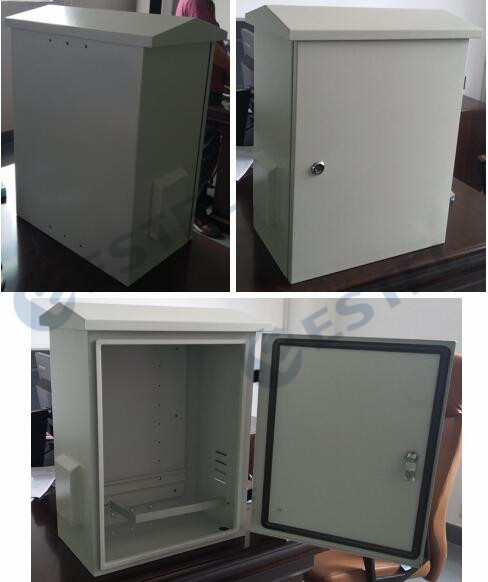

7. Cabinet Pictures
